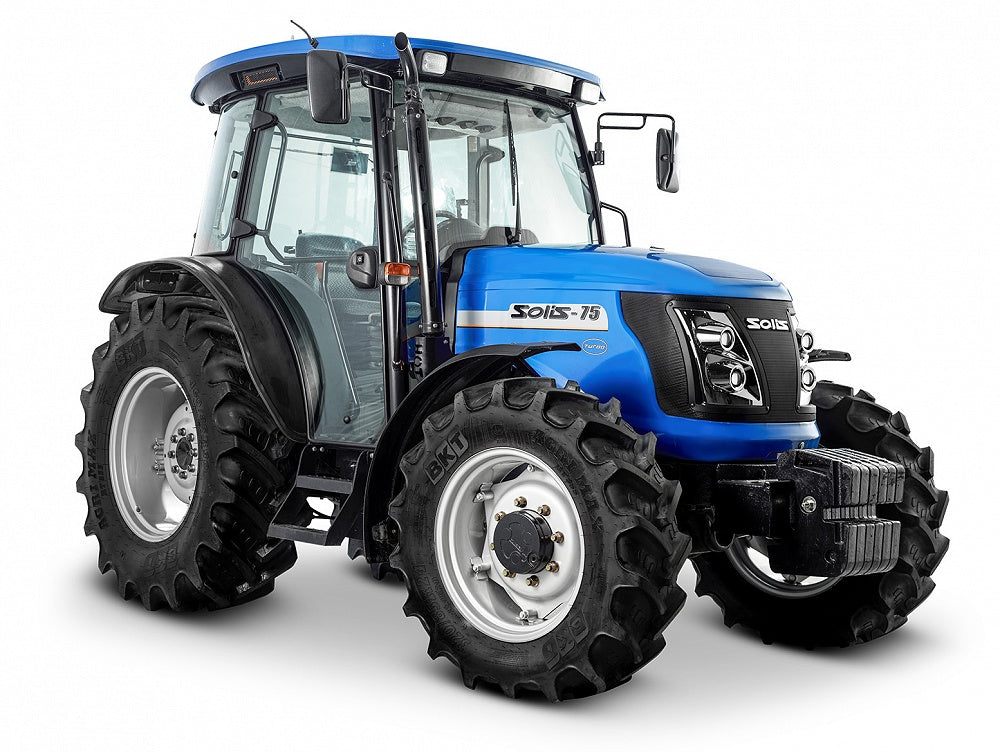

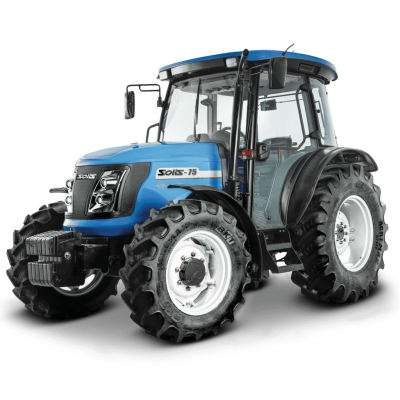

Solis 75
Description
Description
RADIATOR OVERFLOW RESERVIOR (No need to fill coolant again & again)
DRY TYPE AIR CLEANER WITH CLOGGING SENSOR
INSTRUMENT CLUSTER WITH BACKLIT DISPLAY (Easy to see at night)
SYNCHROMESH GEAR BOX WITH SIDE SHIFT GEARLEVERS (EASY GEAR SHIFTING, MORE LEG SPACE)
OIL IMMERSED BRAKES (Low maintenance, longer life)
POWER STEERING (For easy operation & operator comfort)
Technical Specification
| Standard Features | SOLIS EU 75 2WD/4WD |
Engine |
|
| Engine Type | 4100 ELT with coldstart and underhood updraft silencer |
| HP Category | 75 |
| No. of Cylinders | 4 |
| Aspiration | Turbo Charged |
| Bore/Stroke(mm) | 100/118 |
| Cubic Capacity (cc) | 3707 |
| Rated RPM (+/-25mm) | 2000 |
| Air cleaner | Dry air cleaner with clogging sensor |
| Max Torque (Nm) @ RPM | 289+/-5%@1300(+/-100) |
Transmission |
|
| Drive | 2WD/4WD |
| Clutch | Double Clutch |
| Gearbox | 12F+12R |
| Transmission | Synchromesh |
PTO |
|
| PTO (rpm) | 540 & 540 E with independent PTO Clutch |
| PTO (actuation) | Mechanical |
Diff Lock |
|
| Diff. Lock(mechanical) | Yes foot operated |
Electrical |
|
| Battery | 12 V,110 AH |
| Alternator | 12V, 90A @ 6000 RPM |
| Seven pin trailer socket | Yes |
Steering |
|
| Steering | Power Steering |
Tyre |
|
| Front | 7.5X16 / 11.2X24 |
| Rear | 16.9X30 |
Speed(Forward) |
|
| Max Speed(Km/Hr) | 1.41(Forward), 1.19 (Reverse) @2000 rpm |
| Min Speed(Km/Hr) | 32.20@2200 rpm |
| Driver seat | Yes,(E-marked) driver seat |
Hydraulics |
|
| 3 point linkage | CAT2 |
| No.of Spool valves | 4 |
| Auxiliary hydraulic circuit | 2SA/2DA |
| Automatic Draft control | Maintain uniform draft |
| Position control | To hold Lower links at any desired height |
| Hydraulic lifting capacity | 2500 Kg |
Brakes |
|
| Brakes | Oil immersed brakes |
| Type of actuation | Mechanical |
| Hand brake | Yes independent type |
Others |
|
| Canopy | No |
| Fuel Indicator gauge | Yes |
| Registration Plate with light | Yes with E-marked light |
| Front Toe Hook | Yes |
| Front & rear weights | Front base weight 72 kg+ 8×31 kg front removable weights and rear 1×34 kg on each rear wheel |
| Drawbar | Swinging draw bar(E-marked) |
| ROPS | Yes |
Safety Switch |
|
| Neutral safety switch | Yes |
| P.T.O Safety switch | Yes |
| Clutch Safety Switch | Yes |
Capacity (ltrs)(+/-5%) approx |
|
| Fuel tank | 78 |
| Eng Oil | 10.9 |
| Hyd+Tran | 35 |
Dimension & Weight(+/-5%) |
|
| Gross Weight(kg) | 2665(Unladen) / 2950(Unladen) |
| Wheel Base (mm) | 2265 / 2345 |
| Total Length (mm) | 4160 |
| Total Width (mm) | 1980 |
| Height (mm) | 2520(upto ROPS) |
| Ground Clearance (mm) min | 375 mm / 410 mm(between the axles) |
| Front Track, (mm), min.-max. | 1360-1710 / 1540-1910 |
| Rear Track, (mm), min.-max. | 1405-1805 |
Turning Diameter |
|
| Without Brakes (m) | 9.01 left, 9.06 right / 8.54 left, 8.46 right |
| Features | 1.Hydraullic trailer brake 2.Pneumatic Trailer Brake(Single Circuit) 3.Radial Tire(front:-280/85R24 & 420/85 R30) 4.A.C Cabin 5.Heater Cabin 6.Liftomatic |
