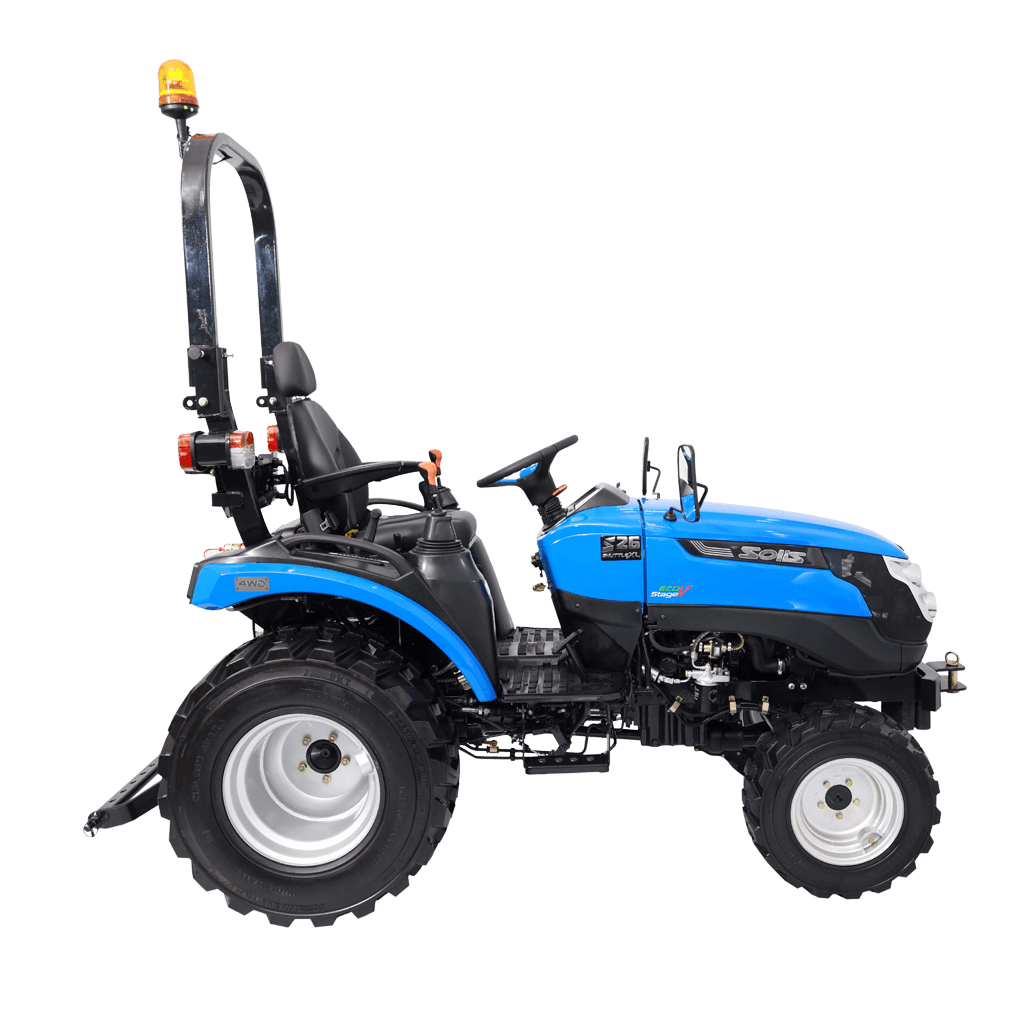

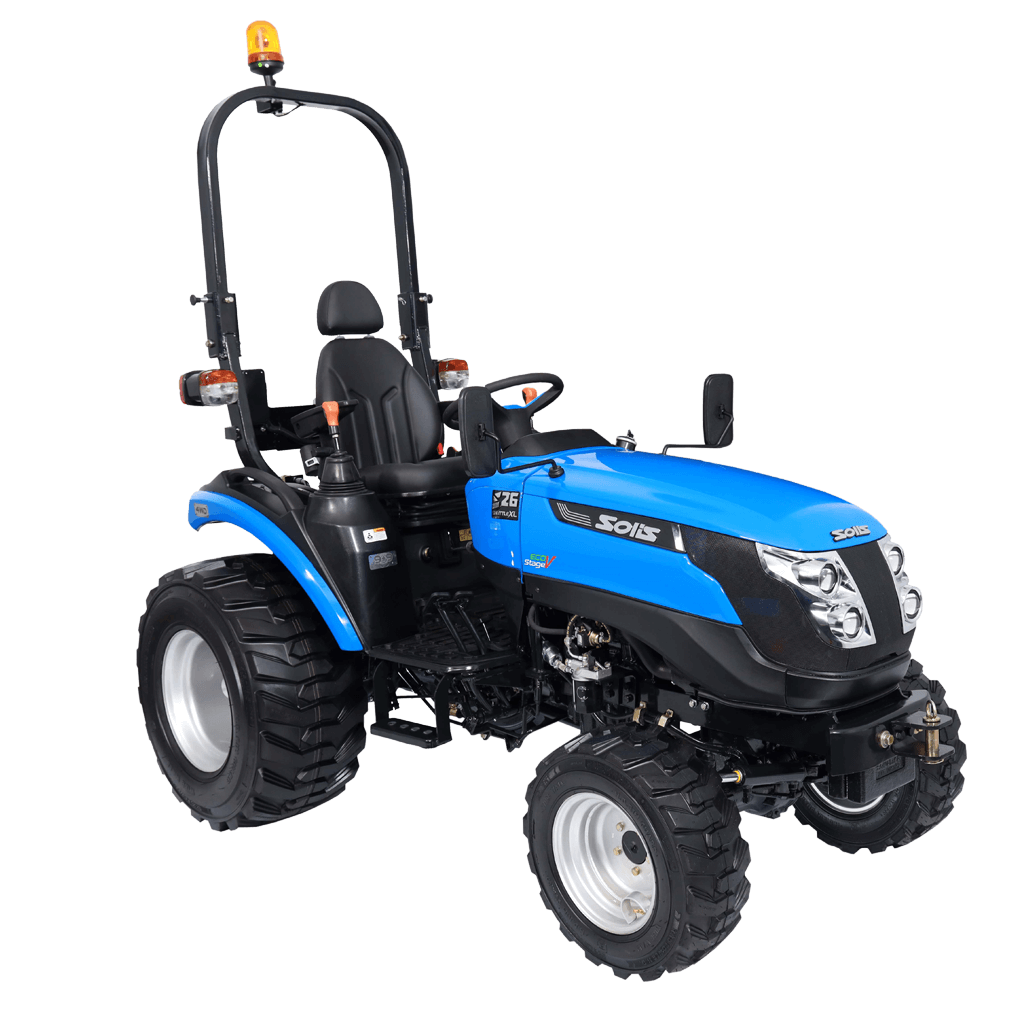

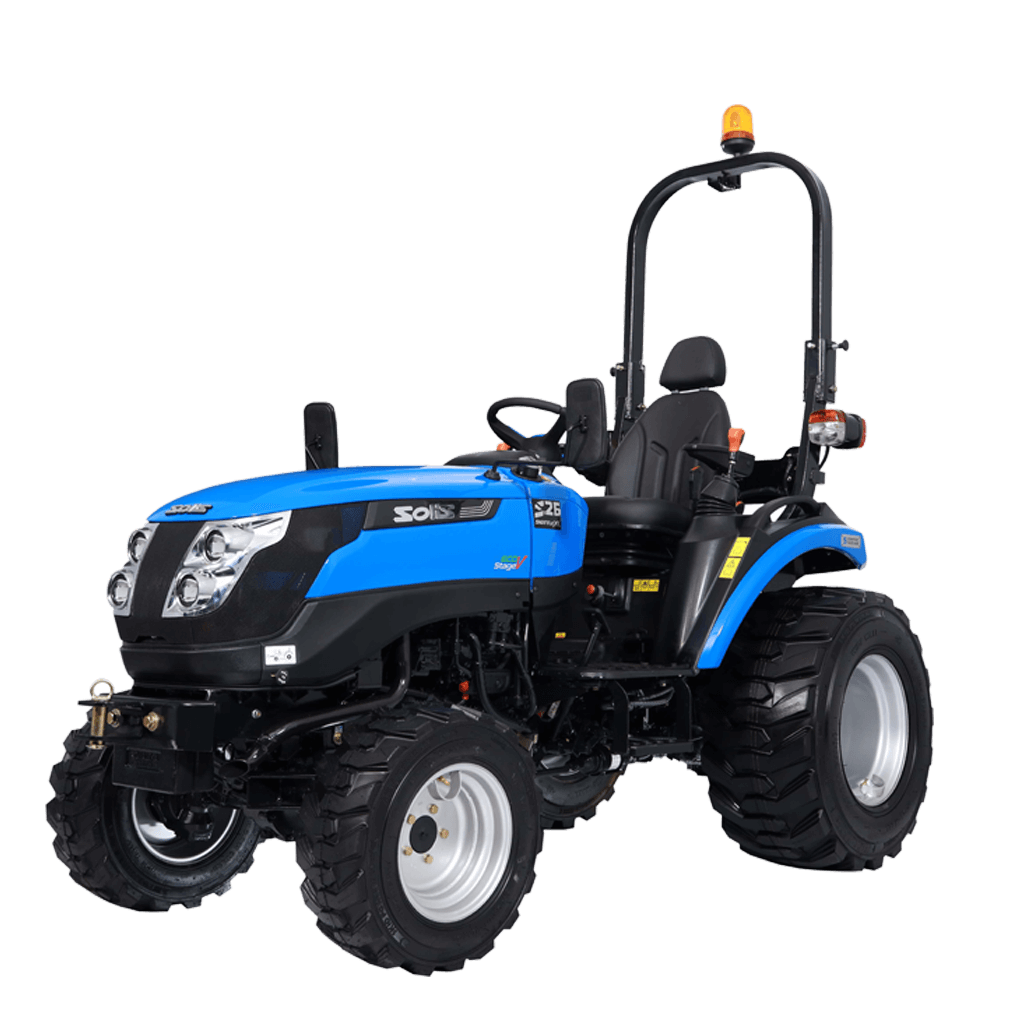

Solis S 26 Shuttle XL (9+9)

Solis S 26 Shuttle XL (9+9)

£9,795.00
£9,795.00
Sale SOLD

Excluding VAT

Take your farming ventures to the next level! Designed with power and unmatched technology, the strong SOLIS S26 XL enhances your potential and delivers great performance every time. Power-packed with a high lifting capacity of 600 Kg and Synchromesh Shuttle Lever transmission, this means machine empowers you to tackle every challenge smoothly.
View full details

Make an Enquiry / Get in Touch

Contact Us

Standard Equipment, Special Equipment, Dimensions, Special Features

Technical Specification: Solis S 26 Shuttle XL (9+9)

Technical Specification

Engine Type Mitsubishi 3-Cylinder Diesel Motor
HP Category 26
No. of Cylinders 3
Aspiration Naturally
Cubic Capacity (cc) 1319
Rated RPM (+/-25mm) 2500
Air Cleaner Dry
Cold Start Standard
Max Torque (Nm) 76.3
Exhaust Silencer in the engine compartment, downward discharge
TRANSMISSION
Drive 4 WD
Clutch Single Clutch
Gearbox 9 Forward + 9 Reverse
Front Axle 4WD
Transmission Constant Mesh with Synchromesh Shuttle Lever
SPEED (FORWARD)
Maximum Speed (Km/Hr) 21.46 @2760 fly up
Minimum Speed (Km/Hr) 1.14@rated
BRAKES
Brakes Oil Immersed
Type of Actuation Mechanical
Parking Brake Independent
Trailer load (unbraked) 1050 Kg
Inertia Braked 3000 Kg
Differential Lock Yes, Foot Operated
PTO
PTO (rpm) 540/540E
PTO (actuation) Mechanical
STEERING
Steering Power steering
ELECTRICAL
Battery 12V, 65 Ah
Alternator 12V, 42 A
Seven Pin Trailer Socket Standard
HYDRAULICS
3 Point Linkage Cat 1-N
Stay Bars Anchor Chain
Additional hydraulic circuit 1 DA
Hydraulic Lifting Capacity 600 Kg
Lift Rods Standard
Litre per Minute(LPM) 17.8
Front loader YES optional
TYRE
Front 6.00-12
Rear 8.30-20
TYRES
Radial Agri: Front | Rear
Turf: Front | Rear
Ind: Front | Rear
GALAXY PRO

Standard Equipment

SAFETY SWITCH
PTO Safety Standard
Neutral Safety Switch Standard
Clutch Safety Switch Standard
CAPACITY (LTRS)(+/-5%)
Fuel Tank (Lit) 20
TURNING RADIUS
Without brakes (m) as per standard tyres 3.02 (RHS), 3.15 (LHS)

Dimensions

Weight (Kg) 1250
Wheel Base (mm) 1570
Total Length (mm) 2895
Total Width (mm) 1215 (max)-1050 (min)
Height (mm) Up to ROPS 2325
Min Ground Clearance (mm) 240
Front Track (mm) 885
Rear Track (mm) 960

Special Features

Fuel Indicator Gauge Standard
Front Tow Hook Standard
Front & Rear Weights with std. Ballast Front weights-2 x 15
Trailer Hitch Towbar, drawbar (optional)
ROPS Yes
OPTIONAL FEATURES
Cabin Option Yes
