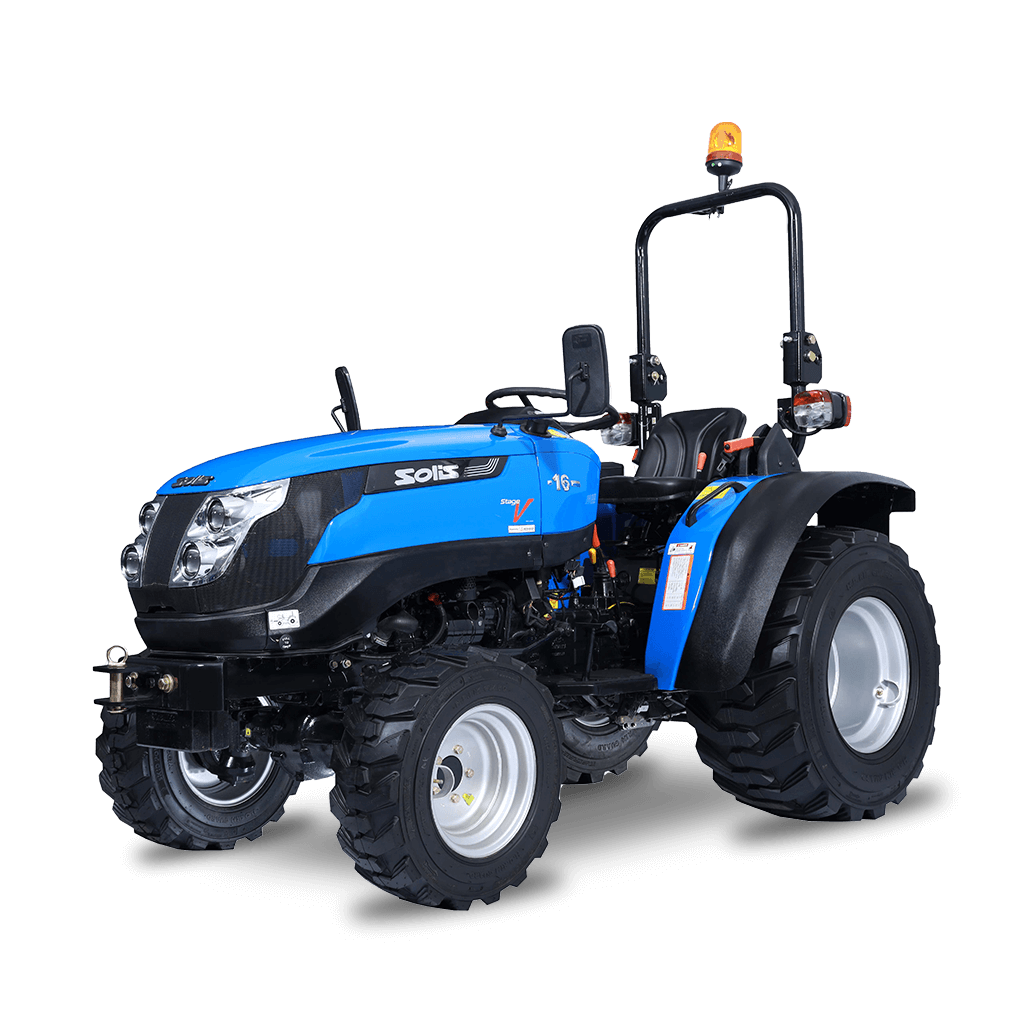

Solis S16

Solis S16

£6,995.00
£6,995.00
Sale SOLD

Excluding VAT

Solis S16 is your one-stop solution for all your needs in gardens and lawns. This Agri expert comes equipped with a heavy-duty engine to provide high power in your lawns
View full details

Make an Enquiry / Get in Touch

Contact Us

Standard Equipment, Special Equipment, Dimensions, Special Features

Technical Specification: Solis S16

Technical Specification

FEATURES S16
ENGINE
Engine Type ITL 3 Cylinder 16 Hp
HP Category 16
No. of Cylinders 3
Aspiration Naturally
Cubic Capacity (cc) 979
Rated RPM (+/-25mm) 2700
Air Cleaner Dry with clogging sensor
Cold Start Standard
Max Torque (Nm) 48
Exhaust Silencer in the engine compartment, downward
discharge
TRANSMISSION
Drive 4 WD
Clutch Single Clutch
Gearbox 6 Forward + 2 Reverse
Front Axle 4WD
Transmission SLIDING MESH
SPEED (FORWARD)
Maximum Speed (Km/Hr) 15.1@2900
Minimum Speed (Km/Hr) 1.36@rated
BRAKES
Brakes Dry drum brake
Type of Actuation Mechanical
Parking Brake Independent
Differential Lock
Differential Lock Yes, Foot Operated
PTO
PTO (rpm) 540, 1000
PTO (actuation) Mechanical
STEERING
Steering Mechanical
ELECTRICAL
Battery 12V, 60 Ah
Alternator 12V, 42 A
Seven Pin Trailer Socket Standard
HYDRAULICS
3 Point Linkage Cat 1-N
Stay Bars Anchor Chain
Additional hydraulic circuit 1DA (Optional Feature)
Hydraulic Lifting Capacity 500 Kg
Lift Rods Standard
Litre per Minute(LPM) 12
SAFETY SWITCH
PTO Safety Standard
Neutral Safety Switch Standard
Clutch Safety Switch Standard
CAPACITY (LTRS)(+/-5%)
Fuel Tank (Lit) 26
TURNING RADIUS
Without brakes (m) as per standard tyres 3.2 (RHS), 3.3 (LHS
TYRE
Front 5.00-12
Rear 8.00-18
Tyres
radial-agri
Radial Agri: Front | Rear tuf-front
Turf: Front | Rear ind-front
Ind: Front | Rear galaxy-pro
GALAXY PRO
Front 6.5/80-12
REAR 280/70 R18 23×8.50-12
33×15.5-16.5 23×8.50-12
33×15.5-16.5 FRONT 220/55R12
REAR 280/70R16
Front loader YES optional

Standard Equipment

*Data and specifications are subject to change without any advance notice due to continuous product improvement and development. All Dimensions are with standard tyres

Dimensions

DIMENSION & WEIGHT
Weight (Kg) 970
Wheel Base (mm) 1420
Total Length (mm) 2735
Total Width (mm) 945(max)-940(min)
Height (mm) Up to ROPS 1945
Min Ground Clearance (mm) 200
Front Track (mm) 805
Rear Track (mm) 715

Special Features

OTHERS
Fuel Indicator Gauge Standard
Front Tow Hook Standard
Trailer Hitch Drawbar / Optional Towbar
ROPS YES
OPTIONAL FEATURES
Cabin Option NO
Front & Rear Weights with std. Ballast Front weights 30 Kg – 2 x 15 Kg (Optional Feature)
Beacon Light Optional
